Tours en plastique pour armature béton
TWR (2 heights per model)
- Bag from 20 to 70
- 64 bags per pallet
- Heights 3″ to 12.5″ in 1/2″ increments
- Suitable for all rebar size
- Description

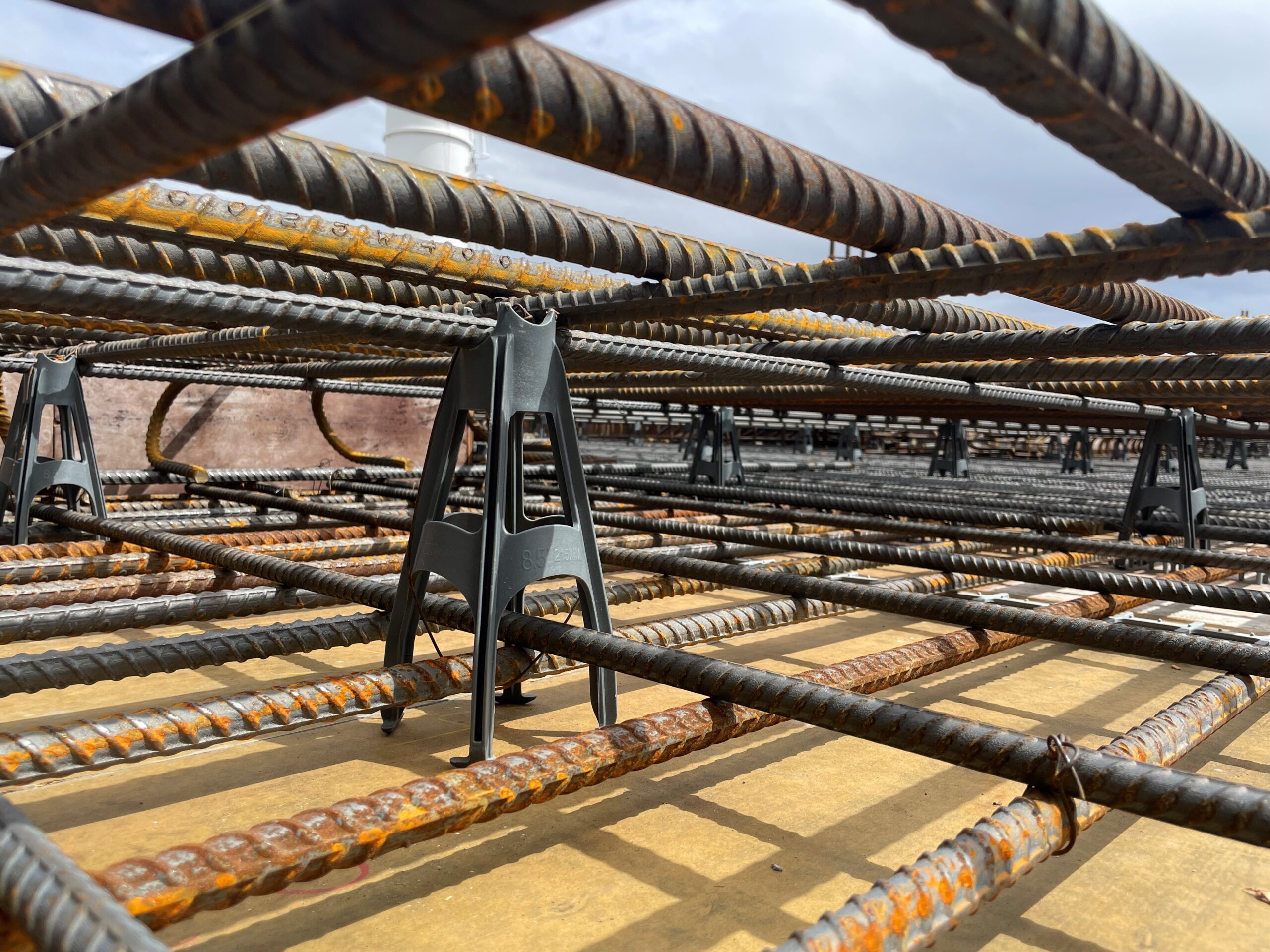

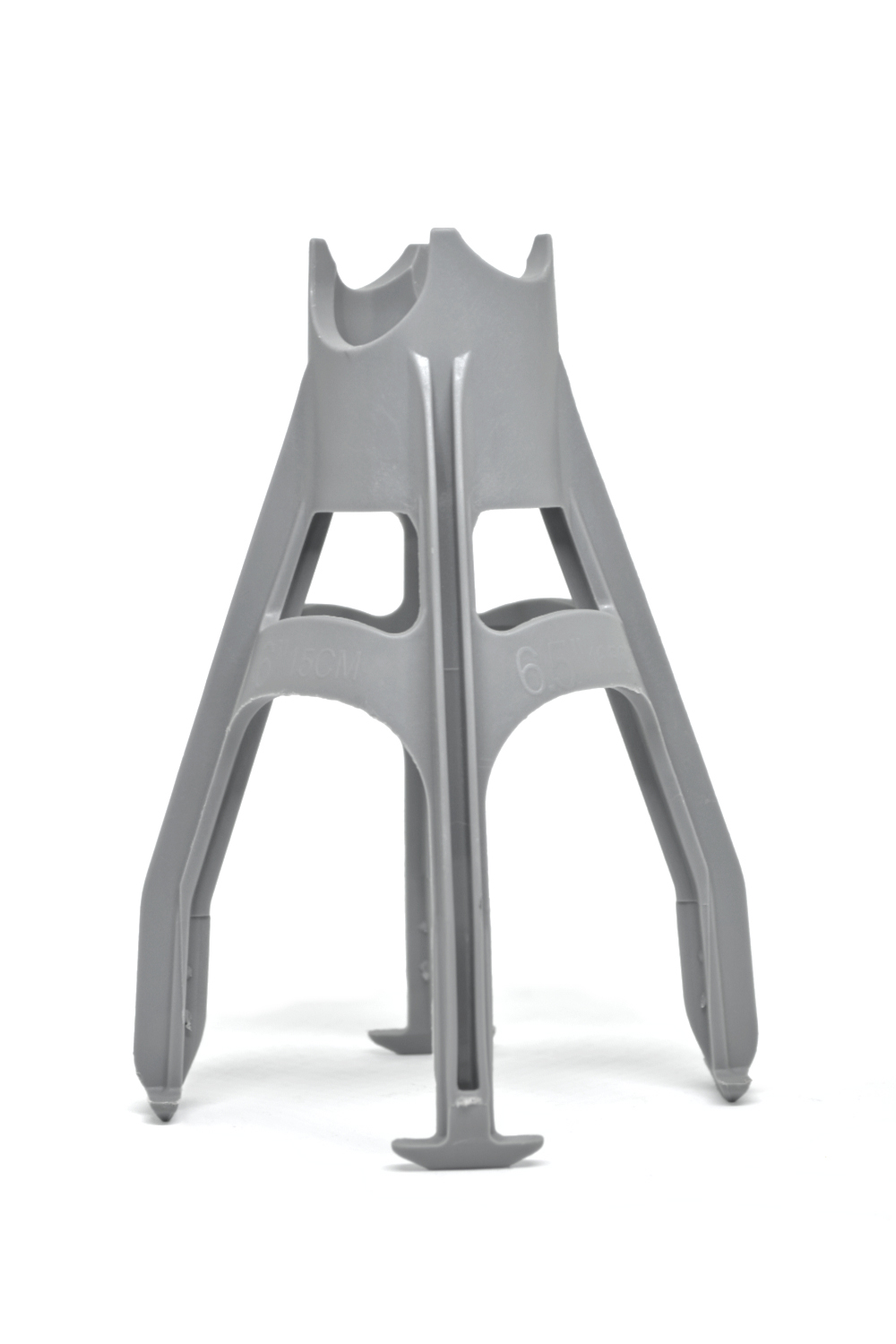

The towers are designed for strength. Thanks to their two integrated heights, they offer unrivalled versatility. Manufactured from a specially developed engineering resin, they are the most robust on the market. What's more, the legs at the base of the towers are designed to leave no marks when the formwork is removed. Frequently used in combination with our slab bolsters products, the towers serve to to support a second or third row of rebars on your top slabs. Their unique shape makes work easier for users, as they can be positioned more easily through the slab bolster or other chairs reinforcement. This product ensures optimum concrete flow to help prevent voids or linear cracks.
- Informations complémentaires
Quantity Bag from 25 to 70
Height(s) 76 mm (3"), 89 mm (3.5"), 102 mm (4"), 113 mm (4.5"), 127 mm (5"), 140 mm (5.5"), 154 mm (6"), 166 mm (6.5"), 180 mm (7"), 192 mm (7.5"), 205 mm (8"), 218 mm (8.5"), 230 mm (9"), 243 mm (9.5")
- Tailles disponibles
List of available products:

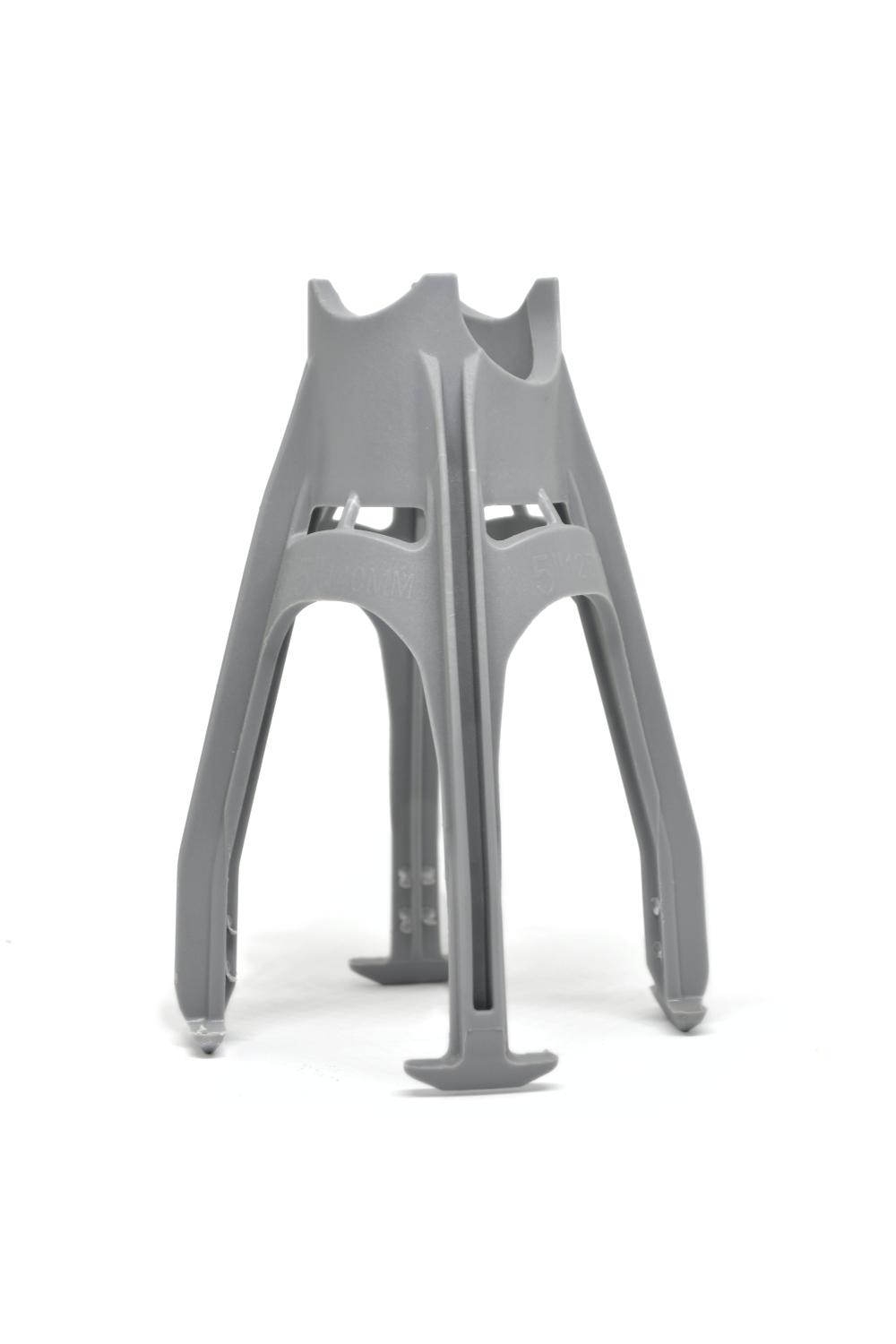

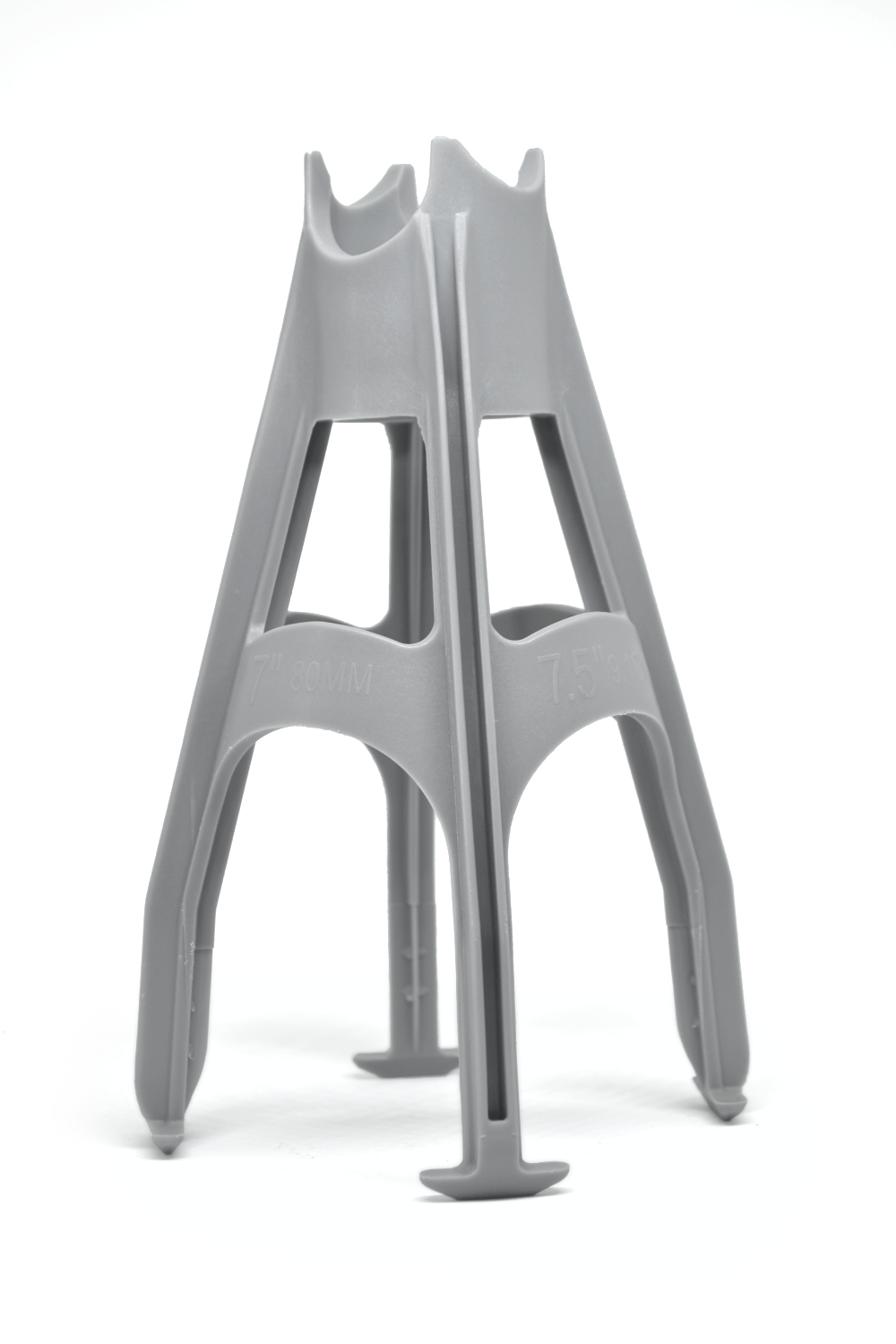

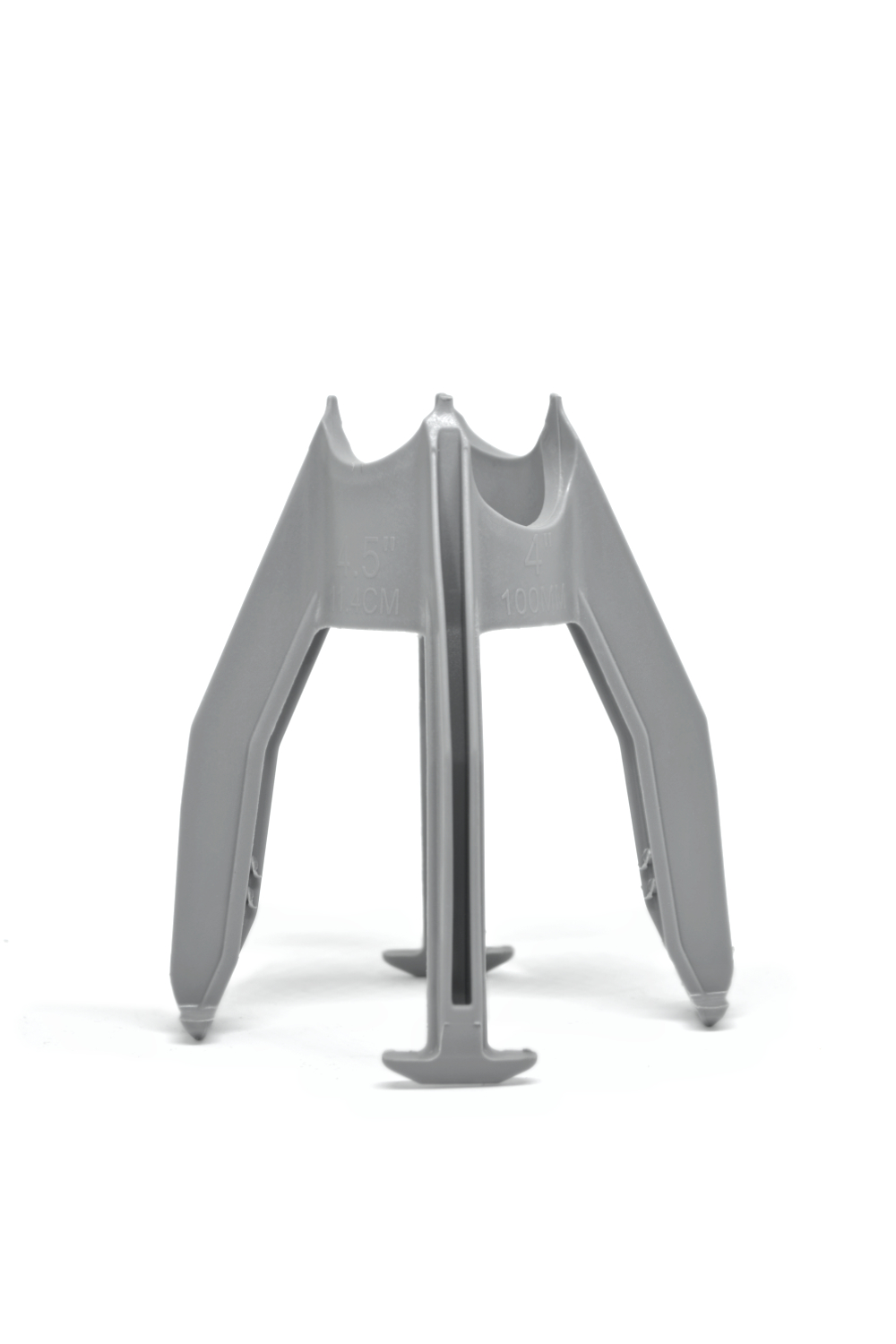

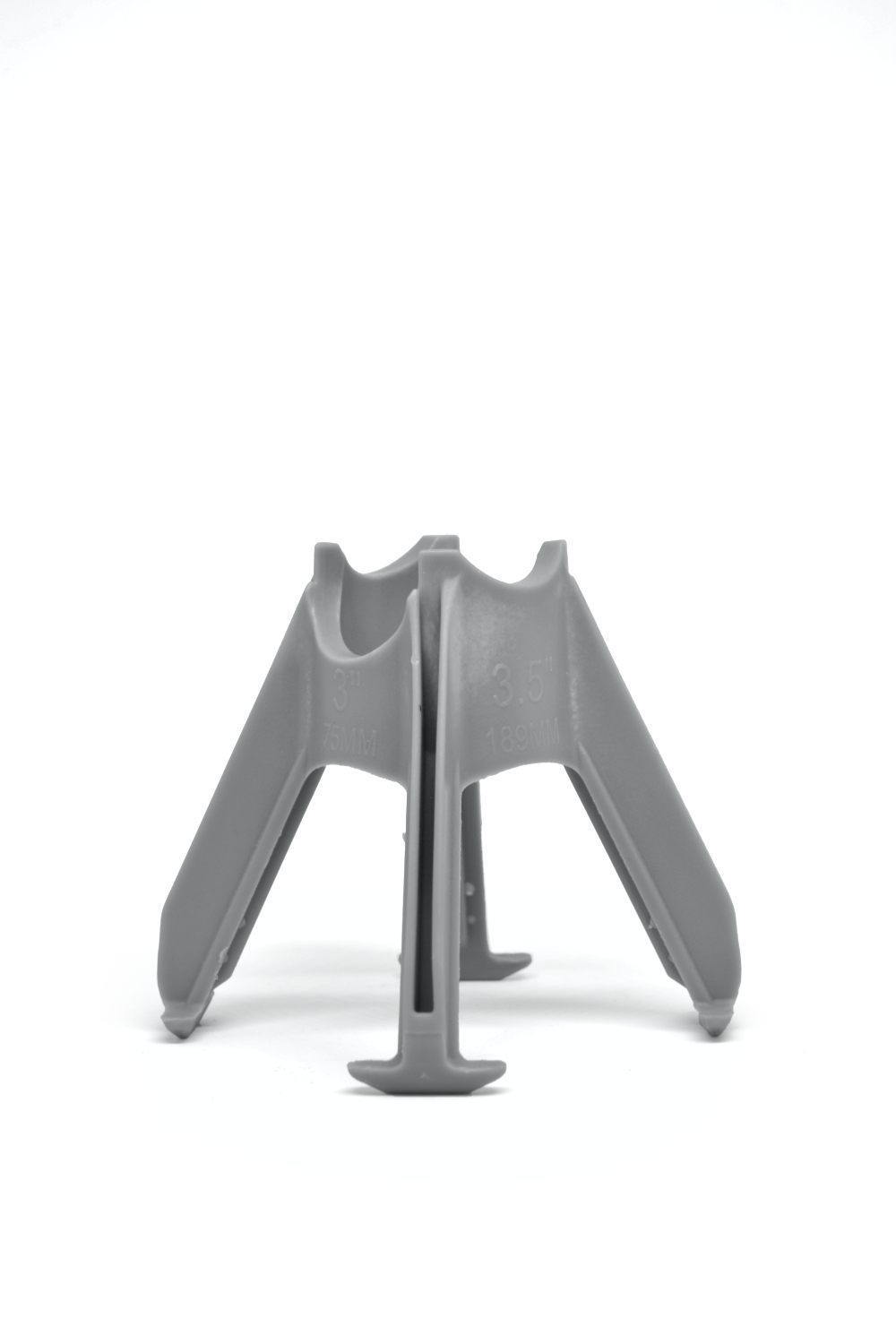

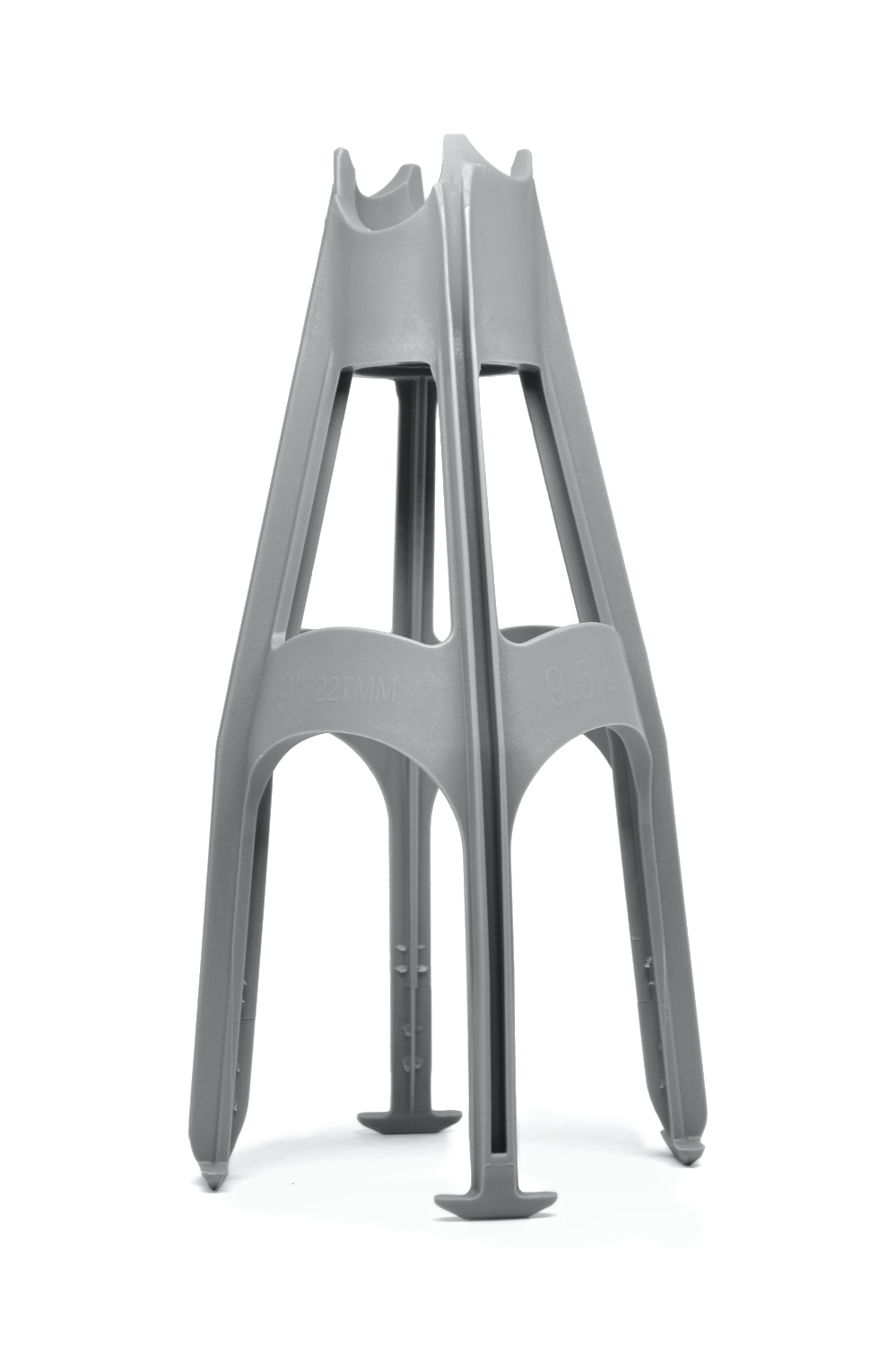

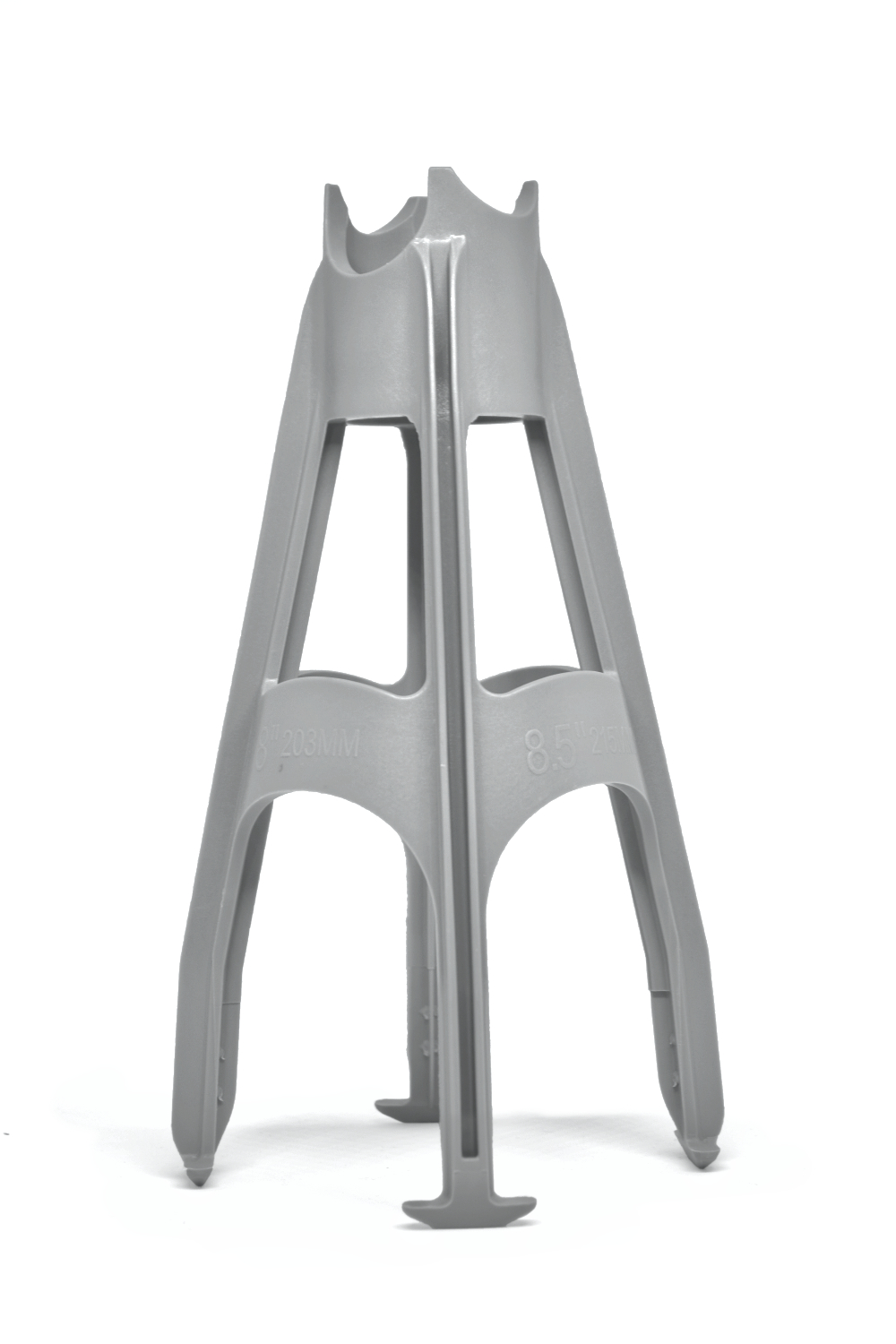

Product Height Quantity per bag Quantity per pallet TWR-3035 3 – 3,5 po (76-90 mm) 70 4,480 pieces/pallet TWR-4045 4 – 4,5 po (104-114 mm) 60 3,840 pieces/pallet TWR-5055 5 – 5,5 po (127-140 mm) 50 3,200 pieces/pallet TWR-6065 6 – 6,5 po (154-166 mm) 40 2,560 pieces/pallet TWR-7075 7 – 7,5 po (180-192 mm) 30 1,920 pieces/pallet TWR-8085 8 – 8,5 po (205-218 mm) 30 1,920 pieces/pallet TWR-9095 9 – 9,5 po (230-243 mm) 25 1,600 pieces/pallet Spacing between towers and sand plates:
Products Base 75 Base 1015 Base 2025 Base 3035 Base 4000 Tower 3035 30 mm X X X X Tower 4045 55 mm 44 mm X X X Tower 5055 61 mm 51 mm X X X Tower 6065 62 mm 51 mm 25 mm X X Tower 7075 62 mm 51 mm 25 mm X X Tower 8085 66 mm 54 mm 29 mm 5 mm X Tower 9095 86 mm 75 mm 46 mm 25 mm 10 mm
L’espacement calculé est la distance entre le point le plus haut de la base (A) et le point le plus bas de la tour (B).
Si vous utilisez l’espace le plus bas sur la plaque de sable pour placer votre barre d’armature, ajoutez 17,5 mm à l’espacement indiqué dans le tableau ci-dessus
